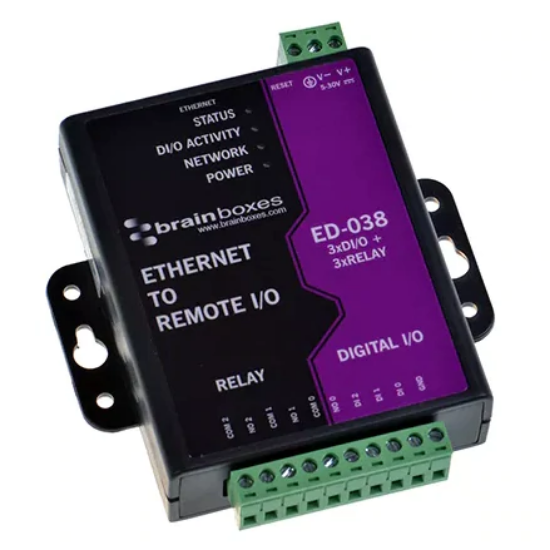

ED-038 Ethernet SMEMA Interface

SMEMA Specification

Can be used to interface with SMEMA Remotely via Ethernet.

• Upstream: 1 Input, 2 Outputs
• Downstream: 2 Inputs, 1 Output

• The SMEMA Specification operates at a 30v Max, but you can interface at any voltage up to 30v as the Inputs are a Switch (Open or Closed) Circuits, ie the voltage you sent out, you get back once the circuit is closed.

Specification

• 3 Form A Relays and 3 Digital Inputs
• Relays: 5A @ 30 VDC, 5A @ 250VAC, 5 A @ 110VAC
• 0°C to +60°C Temperature range, Wall mountable
• Software APIs for Visual Basic, C# and more

Not In Box

• 5v to 30v power supply
