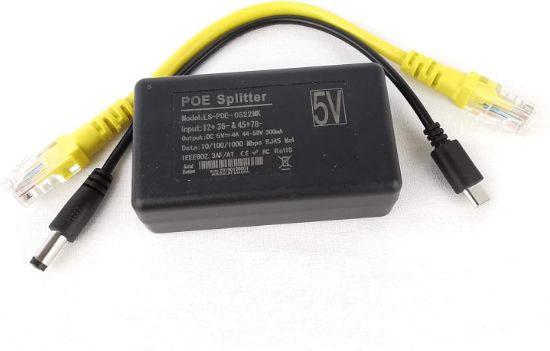

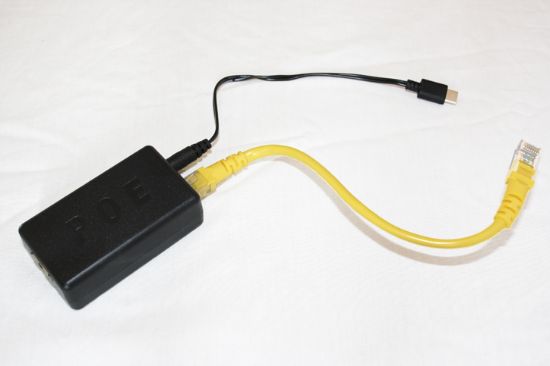

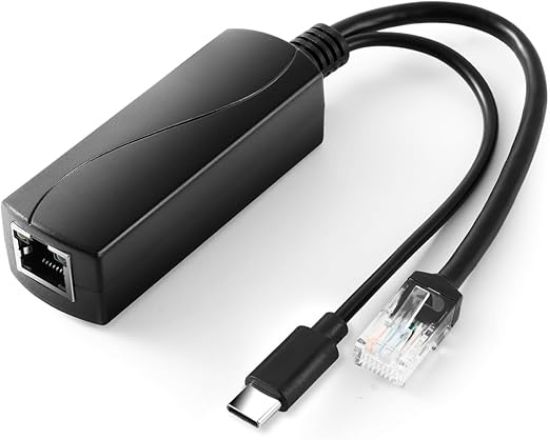

SMEMA Adaptor Family PoE Power Supply

Specifications：
Support international standard IEEE802.3 af/at;
POE port Support 10/100/1000Mdata transmission
PD support 44V-57V voltage transmission, Automatically detects power supply from PSE power supply module
5V/4A power output using Type-C, the Type-C port only for power-charging.
Support the isolation circuit protection, can effectively protect electrical equipment.
Support the short circuit, overvoltage protection
1500V high voltage isolation

Model: TYPEC0504G
Transfer Rate: 10/100/1000Mbps
Power: Input 48V DC/0.6A, Output 5V/4A
Standard: IEEE802.3 af/at
TRNF: 1/2(+),3/6(-);4/5(+),7/8(-)
Interface Type: 1 Input RJ45 port, 1 output RJ45 port, 1 DC output（Type-C）
Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af, IEEE 802.3 at
LED: Yellow PoE lamp
Temperature: Work within -20~50°,Storage within -30~60°
Humidity: Work within 10%~90% (Non-condensing), Storage within 5%~95% (Non-condensing)
Abmessungen: 27.5 x 2.8 x 2.3 cm (L*W*H)
Weight: 0.05kg
