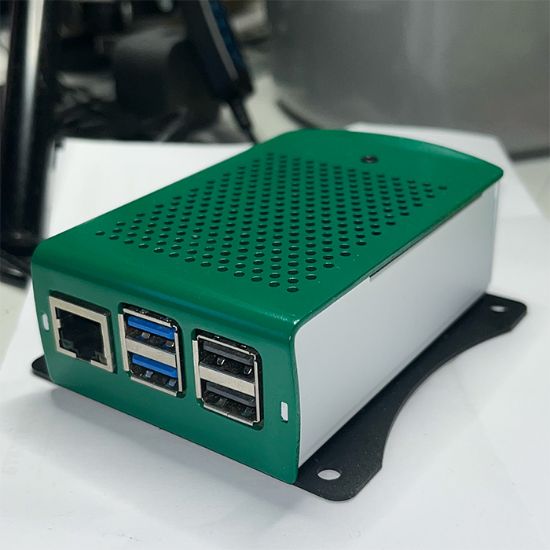

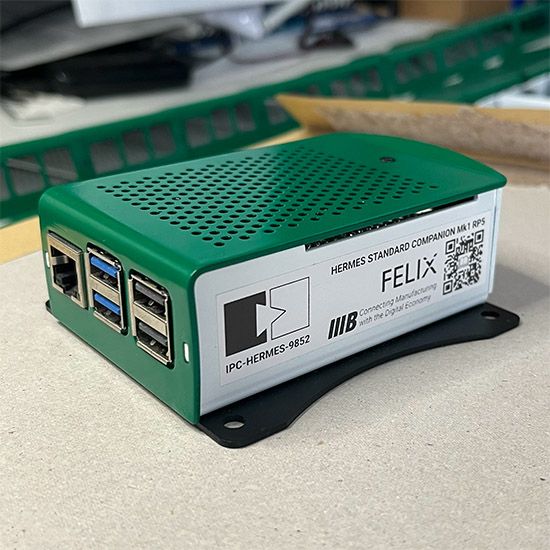

Hermes Standard Companion Mk1

Hermes Standard Companion for OEM PLC Integration

The Hermes Standard Companion is a Raspberry Pi 5 preloaded with the MultiPlug Edge Computing Platform and the MultiPlug.Ext.Hermes software extension for use to integrate with the bespoke control systems of OEM SMT Machines or their PLCs to support IPC-HERMES-9852.
Manufacturer: 4IR.UK British Systems
SKU: B514AE46
£245.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This product requires software integration to a PLC or the third party control system of the SMT Machine - It is therefore targeted at OEMs.

Wholesale pricing available. Assembled to order.

How to Order

  • Create a Wishlist
  • Send the Wishlist URL to shop@SmartFactoryDirect.com to place a order.
  • Worldwide Delivery by DHL

Description

A solution to support IPC-HERMES-9852 on New or Legacy SMT Machines - Conveyors, Printers, Pick and Place, Inspection, Ovens etc.

This product runs the same software as the SMEMA Hermes Adaptor, however the SMEMA states (eg Machine Available) is known using user-defined software messages rather than interfacing with the SMEMA hardware signals.

Note: The software can also run on an existing Windows or Linux PC as a Windows background Service or Linux Daemon.

Product Website

Technical Support

Videos



Products specifications
Attribute nameAttribute value
Import and Export for Customs
Harmonised System (HS) Code85 17 62 00 00
Country of Origin (CO)GB
Measurements
Weight (kg)0.164
Length (mm)98
Width (mm)64
Height (mm)33
Input Power
ConnectorUSB-C
Voltage5.1 DC
Amps (minimum)5
RTC BatteryCoin Cell, 3 Volt, 2032, Lithium Manganese Dioxide, 230 mAh
Software
Edge Computing PlatformMultiPlug 2.2
MultiPlug ExtensionsMultiPlug.Ext.Hermes (Proprietary), MultiPlug.Ext.Hermes.Config (Proprietary), MultiPlug.Ext.RasPi.Config (Open source), MultiPlug.Ext.Network.Sockets (Open source)
Warranty
Standard1 Year
In-The-Box
AdaptorHERMES STANDARD COMPANION MK1 RP5
MountYes
Power SupplyNo
Data Connections
Ethernet1
USB 2.02
USB 3.02
WiFi2.4 GHz and 5.0 GHz IEEE 802.11ac
Computer
ProcessorBroadcom BCM2712 quad-core Arm Cortex A76 processor @ 2.4GHz
RAM2GB LPDDR4X-4267 SDRAM
Data Storage32GB SD Card
Micro-HDMI ports2
Real Time Clock1
CoolingActive
User Interface
On-Device1 Shutdown or Restart Button
Setup and MonitoringWeb Browser
