SMEMA Ethernet Adaptor for Single Lane SMT IPC-SMEMA-9851

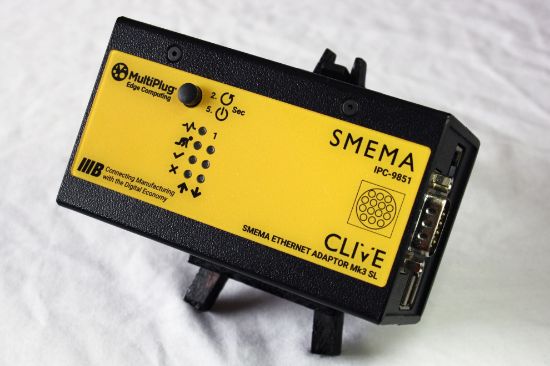

SMEMA Ethernet Adaptor (CLIVE) for single lane production line electronic assembly. (SMT/SMD)
Manufacturer: 4IR.UK British Systems
Availability: 24 in stock
SKU: B5145E85
£285.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Note:

  • Checkout closed, contact shop@SmartFactoryDirect.com to place a order.

Description

Interface to SMEMA using Ethernet connections and a event based architecture

  • Compact Design
  • Low Cost
  • Speedy Setup
  • Headless Device

As we move towards a Smart Factory, IT Professionals and Solutions Engineers who traditionally work within the digital economy need to interact with legacy interfaces found on SMT production line equipment.

This adaptor allows such people to either interact with the raw SMEMA signals found on legacy equipment or using the MultiPlug Edge Computing Platform allows them to create a solution using building blocks of MultiPlug software extensions.

Such solutions may be to use SMEMA as an interlock to pause and check if a product should proceed down the production line to the next manufacturing equipment. To achieve this the Adaptor acts as a SMEMA middleman, not turning on either the Machine Ready SMEMA signal, or the Good/Bad Board SMEMA signal until the software check is made.

It is important to understand when purchasing this Adaptor that it is provided with no software solution apart from the MultiPlug as a building block so it’s wise to contact us first to collaborate with any possible solution. The MultiPlug SMEMA Extension provides basic Stop/Start of SMEMA signals using an event based architecture.

Software Engineers can also interact directly with the Adaptor’s I/O by creating their own software as the Adaptor runs a Linux operating system and is based on a single board computer. They can also create their own MultiPlug Extensions to handle bespoke functionality.

The Adaptor also features a RS232 serial port and 4 USB ports for connections to other equipment on the production line. A real time clock makes data logging possible.

A product website can be viewed at: www.smema-ethernet-adaptor.info/

Typical Applications

  • SMEMA Interlocking
  • MES Interlocking*
  • SMT Scan Station*
  • Data Logging*
  • Data Exchange*
  • General I/O
  • Upgrade path to The Hermes Standard and CFX Connected Factory Exchange*

* Additional software required, contact 4IR.UK British Systems customer support

Products specifications
Attribute nameAttribute value
Import and Export for Customs
Harmonised System (HS) Code85 17 62 00 00
Country of Origin (CO)GB
Measurements
Weight (kg)0.227
Length (mm)109
Width (mm)62
Height (mm)55
Input Power
Voltage5.1 DC
Amps (minimum)3
ConnectorUSB-C
RTC BatteryCoin Cell, 3 Volt, 2032, Lithium Manganese Dioxide, 230 mAh
IPC-SMEMA-9851
ConnectorRJ12
Switching TechnologyRelay
Switching Voltage (Max)30 DC
Output Voltage5
Connectors2
Software
Operating SystemRaspberry Pi OS Lite (32-bit) Debian Linux Bullseye
Edge Computing PlatformMultiPlug 2.2
MultiPlug ExtensionsMultiPlug.Ext.SMEMA (Open source), MultiPlug.Ext.RasPi.Config (Open source), MultiPlug.Ext.RasPi.GPIO (Open source), MultiPlug.Ext.SerialPort (Open source)
Warranty
Standard1 Year
In-The-Box
AdaptorSMEMA Ethernet Adaptor SL
Power SupplyNo
CablesNo
MountNo
Data Connections
Ethernet1
USB 2.02
USB 3.02
WiFi2.4 GHz and 5.0 GHz IEEE 802.11ac
RS-232 DB-91
Computer
ProcessorBroadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
RAM2GB LPDDR4-3200 SDRAM
Data Storage32GB SD Card, 32GB SD Card
Audio4-pole stereo audio and composite video port
Micro-HDMI ports2
Real Time Clock1
CoolingActive
User Interface
On-Device1 Shutdown or Restart Button
Setup and MonitoringWeb Browser
