SMEMA Hermes Adaptor for Dual SMT Lanes IPC-HERMES-9852 Upgrades

SMEMA Hermes Adaptor (AUSTIN) for dual lane production line electronic assembly. (SMT/SMD)
Manufacturer: 4IR.UK British Systems
Availability: 5 in stock
SKU: B5145A55
£385.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Note:

  • The Manufacturer of this product is limiting orders to 2 per customer while the customer conducts their own evaluations. Once the customer is satisfied with the product unlimited products can be purchased.
  • The Manufacturer is requesting customers to complete a pre-sales questionnaire to gain customer support and to achieve customer satisfaction. The questionnaire can be found here.

Description:

With the release of the IPC-HERMES-9852 Standard and its intent to replace the existing SMEMA standard, SMT manufacturers require an upgrade path for their existing equipment.

Where available, an software upgrade is the obvious upgrade path for manufacturing equipment, however this may not be available for 'dumb' equipment such as conveyors.

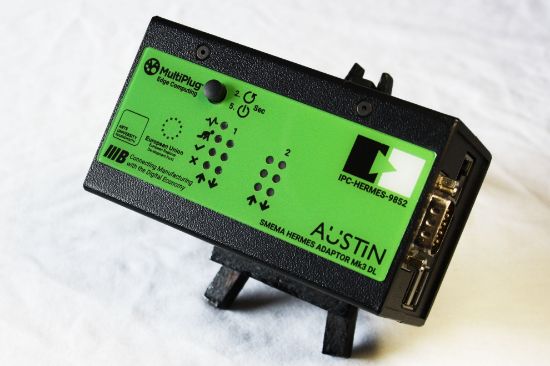

AUSTIN, our Dual Lane SMEMA Hermes Adaptor mimics the SMEMA Upline and Downline states, by retrieving the Hermes board data from the equipment previous in the line, and retrieves the Hermes Ready, Not Ready, state from the equipment next in-line, this is then converted into SMEMA signals for the legacy equipment to interpret.

The Adaptor is a hardware device that has both Upline and Downline SMEMA JR12 Connections, an Ethernet port for Hermes connections, and runs on a powerful single board computer. One Adaptor is required for each piece of equipment that lacks Hermes compatibility.

An RS232 serial port is available for automatic conveyor width adjustments or other legacy equipment communication.

Configuration is conducted by a MultiPlug Extension which also handles all the Hermes software connections.

Products specifications
Attribute nameAttribute value
Import and Export for Customs
Harmonised System (HS) Code85 17 62 00 00
Country of Origin (CO)GB
Measurements
Weight (kg)0.227
Length (mm)109
Width (mm)62
Height (mm)55
